Wire from main panel to subpanel

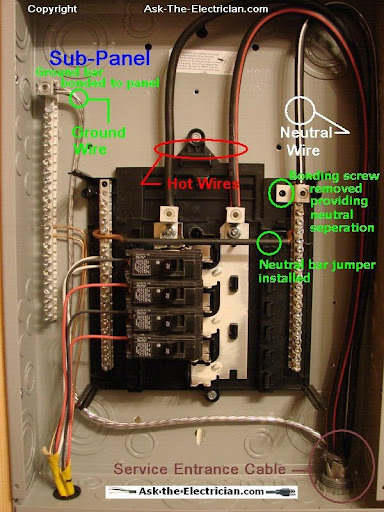

Most panels come with a bar joining the two, which is easily removed. Code requires subpanels to have a ground connection that's independent of the main panel's.

How do you feed a subpanel from the main panel?

Step-by-Step Guide to Feed a Subpanel from a Main Panel

1. Confirm everything you need.
2. Allocate a breaker in the main panel for feeding the subpanel. ...
3. Make sure your wires are properly set up. ...
4. Pull the wires through the conduit. ...
5. Start feeding. ...
6. Attach the wires to the correct terminals. ...
7. Install the feeder breaker.

What size wire do I need to feed a subpanel?

Sub panels hold two to 12 breakers. For a six-space panel used indoors, a 100-amp wire size is needed, while a two-space, outdoor panel can work with a 60, 100, or 200-amp wire. Always check the product rating to make sure you're using the correct wires.

Can you run a 100 amp sub panel off a 100 amp main panel?

Installing a 100 amp subpanel is fine since you can protect it with a 100 amp breaker from the main, which is that panel's maximum amp rating. You can feed it using the main breaker, assuming the wire size for the subpanel matches the main's.

What size wire do I need for a 100 amp sub panel 100 feet away?

If you check the wire size chart (you have the link in the introduction), the #0 AWG wire (also known as 1/0 AWG wire) has 150 ampacity. That means that #0 AWG wire is the perfect size wire for 100 amp service 100 feet away.

Why do subpanels separate ground and neutral?

With ground and neutral bonded, current can travel on both ground and neutral back to the main panel. If the load becomes unbalanced and ground and neutral are bonded, the current will flow through anything bonded to the sub-panel (enclosure, ground wire, piping, etc.) and back to the main panel. Obvious shock hazard!

Why does a subpanel need 4 wires?

The current NEC code requires a 4-wire feeder so there is a separate grounding connector between the Main and Sub panels. The neutral and ground are not bonded in the subpanel.

Should ground and neutral be separate in subpanel?

When Should Grounds & Neutrals Be Connected in a SubPanel? The answer is never. Grounds and neutrals should only be connected at the last point of disconnect. This would be at main panels only.

Can you feed a sub panel with 12 2 wire?

12/2 is perfectly legitimate, but obviously gives you a max of 20A @ 120V. Putting in a new subpanel does make sense.

Can you wire a subpanel with 3 wires?

Another way to wire a subpanel was with a three-wire feed; two hots and a neutral, with grounds and neutrals connected together at the subpanel. In this case, the grounds and neutrals have to be connected together.

What size wire do you use for a 60 amp sub panel?

“What size wire do I need for a 60 amp sub panel?” is a common question because most sub panel setups fall within that amp load. Based on Table 310-16 of the NEC, a 6 AWG copper wire for the hot and neutral connections and a ground wire size of 8 AWG will do.

Can you run a 100 amp sub panel off a 200 amp main panel?

To run a 100 amp sub panel off a 200 amp main panel, feed the ground wire through the PVC conduit and secure it to the main panel's ground bar. Secure the other end of the ground wire to the sub panel's ground bar. Next, wiring a subpanel with 3 wires typically needs you to feed the feeder wire through the PVC conduit.

What size wire do I need for 200 amp service 150 feet?

The 250 KCMIL wire is the perfect size wire for 200 amp service because it has 255A ampacity (a minimum of 250A ampacity requirement is satisfied).

How big of a sub panel can I install off a 200 amp service?

There's no specific limit on the number of sub-panels that a main panel can feed. So, yes, it's theoretically allowed to let a 200 amp main service supply 1,000 subpanels.

Can I run a separate ground wire to subpanel?

Here it is: Your ground and neutral wires definitely need to bond (or connect) together. But this is ONLY allowed in the main panel— never a subpanel, or anywhere else in the home. This is a very common mistake we see in the electrical part of your inspection.

How many 20 amp breakers can I put in a 100 amp panel?

Typical 100-amp panels have 20 circuits, meaning they can handle 20 full-sized breakers. 20/24 panels can hold 16 full-sized and 4 twin breakers (24 circuits in total). The number of breakers can max out to 30-42, too, depending on the design of your 100-amp pane.

What size breaker do I need for a 100 amp subpanel?

The correct breaker is a 100-amp breaker if you want to use the full 100 amps. Many 100 amp panels come with a 100 amp main breaker. If you will only need 50 or 60 amps, and you installed a 100-amp sub panel, there is nothing wrong with using a 60-amp breaker in the main panel (or wh

Will #2 wire fit in a 100 amp breaker?

A #2 AWG wire is needed for a 100 amp service. This wire is used when the run between the breaker panel and the electrical load (such as an air conditioner) is long, like in large commercial buildings. A #4 AWG wire will be needed if the distance between the breaker panel and the electrical load is less than 50 feet.

What size wire do I need for 100 amp service 300 feet away?

for 300 feet for 100 amp rated service I would use Aluminum direct burial 1/0-1/0-1/0-1/0, the forth can be as low as #4 for the ground (but also in conduit, even if in conduit must still be rated underground wire and required by code also) Also note the size wire the breaker can handle, cannot cut strands to make fit,

What size wire do I need to run 100 amp Service 150 feet?

As an example, for single-phase circuits, use 2/0 AWG copper wire or 4/0 AWG aluminum wire. If you have three-phase circuits, use 1/0 AWG Copper wire or 3/0 AWG Aluminum wire. The average voltage drop for these lines should be 3%.
